HP ProDesk 600 G5 SFF PC 7AC44EA Intel Core™ i5
<!–
HP ProDesk 600 G5 SFF PC 7AC44EA i5 Specification
–>
HP ProDesk 600 G5 SFF PC 7AC44EA SPECIFICATIONS
Available Operating Systems
Windows 10 Pro 64 – HP recommends Windows 10 Pro for business
Windows 10 Pro 64 (National Academic only)
Windows 10 Home 64
Windows 10 Home Single Language 64
FreeDOS
Processor family
8th Generation Intel® Core™ i3 processor (i3-8100); 8th Generation Intel® Core™ i5 processor (i5-8500); 8th Generation Intel® Core™ i7 processor (i7-8700);
9th Generation Intel® Core™ i3 processor (i3-9100, i3-9300); 9th Generation Intel® Core™ i5 processor (i5-9500, i5-9600); 9th Generation Intel® Core™ i7
processor (i7-9700); 9th Generation Intel® Core™ i9 processor (i9-9900); Intel® Celeron® processor (G4930 is Windows 10 only); Intel® Pentium® processor
(G5420, G5600, G5620 are Windows 10 only)
Available Processors
Intel® Celeron® G4930 with Intel® UHD Graphics 610 (3.2 GHz base frequency, 2 MB cache, 2 cores); Intel® Core™ i3-8100 with Intel® UHD Graphics 630 (3.6
GHz base frequency, 6 MB cache, 4 cores); Intel® Core™ i3-9100 with Intel® UHD Graphics 630 (3.6 GHz base frequency, up to 4.2 GHz with Intel® Turbo Boost
Technology, 6 MB cache, 4 cores); Intel® Core™ i3-9300 with Intel® UHD Graphics 630 (3.7 GHz base frequency, up to 4.3 GHz with Intel® Turbo Boost
Technology, 8 MB cache, 4 cores); Intel® Core™ i5-8500 with Intel® UHD Graphics 630 (3 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology,
9 MB cache, 6 cores) supports Intel® vPro™ Technology; Intel® Core™ i5-9600 with Intel® UHD Graphics 630 (3.1 GHz base frequency, up to 4.6 GHz with Intel®
Turbo Boost Technology, 9 MB cache, 6 cores) supports Intel® vPro™ Technology; Intel® Core™ i7-8700 with Intel® UHD Graphics 630 (3.2 GHz base frequency,
up to 4.6 GHz with Intel® Turbo Boost Technology, 12 MB cache, 6 cores) supports Intel® vPro™ Technology; Intel® Core™ i9-9900 with Intel® UHD Graphics 630
(3.1 GHz base frequency, up to 5 GHz with Intel® Turbo Boost Technology, 16 MB cache, 8 cores) supports Intel® vPro™ Technology; Intel® Pentium® Gold
G5420 with Intel® UHD Graphics 610 (3.8 GHz base frequency, 4 MB cache, 2 cores); Intel® Pentium® Gold G5600 with Intel® UHD Graphics 630 (3.9 GHz base
frequency, 4 MB cache, 2 cores); Intel® Pentium® Gold G5620 with Intel® UHD Graphics 630 (4 GHz base frequency, 4 MB cache, 2 cores); Intel® Core™ i5-9500
with Intel® UHD Graphics 630 (3 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 9 MB cache, 6 cores) supports Intel® vPro™
Technology; Intel® Core™ i7-9700 with Intel® UHD Graphics 630 (3 GHz base frequency, up to 4.7 GHz with Intel® Turbo Boost Technology, 12 MB L3 cache, 8
cores) supports Intel® vPro™ Technology
Chipset Intel® Q370 (vPro); Intel® Q370 (non-vPro)
Form factor Small form factor
Maximum memory 128 GB DDR4-2666 SDRAM
Transfer rates up to 2666 MT/s.
Memory slots 4 DIMM
Internal storage
500 GB up to 2 TB SATA HDD
up to 500 GB SATA SED Opal 2 HDD
up to 500 GB SATA SED FIPS HDD
256 GB up to 512 GB SATA SSD
256 GB up to 512 GB SATA SED Opal 2 SSD
256 GB up to 512 GB SATA SED FIPS SSD
256 GB up to 512 GB PCIe® NVMe™ M.2 SSD
256 GB up to 512 GB PCIe® NVMe™ SED Opal 2 TLC M.2 SSD
128 GB up to 1 TB PCIe® NVMe™ TLC M.2 SSD
Storage acceleration
16 GB NVMe™ Intel® Optane™ Memory for storage acceleration
Optical drive HP 9.5 mm Slim DVD-Writer; HP 9.5 mm Slim DVD-ROM; HP 9.5 mm Slim Blu-ray writer
Available Graphics Integrated: Intel® UHD Graphics 630; Intel® UHD Graphics 610
Discrete: NVIDIA® GeForce® GT 730 (2 GB GDDR5 dedicated); AMD Radeon™ R7 430 Graphics (2 GB GDDR5 dedicated); AMD Radeon™ RX 550X Graphics (4 GB
GDDR5 dedicated)
Audio Conexant CX20632 codec, 2 W internal speaker, universal audio jack, headset and headphone front ports (3.5 mm), multi-streaming capable
Expansion slots 1 M.2 2230; 1 M.2 2230/2280; 1 PCIe 3 x4; 1 PCIe 3 x16; 1 SD 4.0 media card reader (1 M.2 slot for WLAN and 1 M.2 2230/2280 slot for storage.)
Ports and Connectors
Front: 1 headset connector; 1 SuperSpeed USB Type-C® 10Gbps signaling rate; 1 USB 2.0; 1 USB 2.0 (fast charging); 2 SuperSpeed USB 10Gbps signaling rate

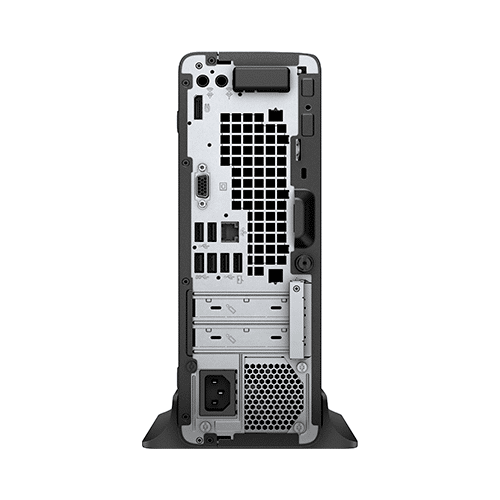

Rear: 1 audio-in; 1 audio-out; 1 power connector; 1 RJ-45; 2 DisplayPort™ 1.2; 2 SuperSpeed USB 10Gbps signaling rate; 2 SuperSpeed USB 5Gbps signaling
rate; 2 USB 2.0
@@Optional Ports@@: 1 HDMI 2.0; 1 serial; 1 DisplayPort™ 1.2; 1 parallel; 1 serial and PS/2 ports combination; 1 SuperSpeed USB Type-C® 10Gbps signaling
rate (DisplayPort™); 1 VGA
Input devices HP PS/2 Business Slim Keyboard; HP USB Conferencing Keyboard; HP USB Premium Keyboard; HP USB Wired Keyboard; USB Business Slim Standalone Wired
Keyboard; HP USB Collaboration Wired Keyboard; HP Wireless Collaboration Keyboard; HP Wireless Premium Standalone Keyboard ; HP PS/2 Mouse; HP USB
1000 dpi Laser Mouse; HP USB Hardened Mouse; HP USB Optical Mouse; HP USB Premium Mouse; HP USB Fingerprint Mouse
Communications LAN: Intel® I210-T1 PCIe® GbE; Intel® I219LM GbE WLAN: Intel® Dual Band Wireless-AC 9560 802.11ac (2×2) and Bluetooth® 5 M.2 PCIe®, vPro™; Intel® Dual
Band Wireless-AC 9560 802.11ac (2×2) and Bluetooth® M.2 PCIe®, non-vPro™; Realtek RTL8821CE-CG 802.11a/b/g/n/ac (1×1) with Bluetooth® M.2 PCIe®;
Realtek RTL8822BE-CG 802.11a/b/g/n/ac (2×2) with Bluetooth® 4.2 M.2 PCIe® ;
Drive Bays 1 slim ODD; One 3.5″ HDD convertible to two 2.5″ HDD
Environmental Operating temperature: 5 to 35°C; Operating humidity: 5 to 90% RH
Available Software HP Hotkey Support; HP Noise Cancellation Software; HP Setup Integrated OOBE Win10; HP Support Assistant; Native Miracast Support; Buy Office (sold
separately); HP JumpStarts; HP Privacy Settings
Security management
Absolute Persistence module; DriveLock; Hood sensor; HP BIOSphere; HP Client Security Suite; HP Power On Authentication; HP Secure Erase; HP Sure Click; HP
Sure Sense; HP Sure Start; Intel® Identity Protection Technology (Intel® IPT); Master Boot Record Security; Power-on password (via BIOS); Pre-boot
Authentication; RAID configurations; Removable media write/boot control; SATA port disablement (via BIOS); Serial enable/disable (via BIOS); Setup password
(via BIOS); Support for chassis padlocks and cable lock devices; TPM 2.0 (Firmware: 7.85) endpoint security controller (Infineon SLB9670) shipped with
Windows 10. Common Criteria EAL4+ Certified. FIPS 140-2 Level 2 Certified; USB enable/disable (via BIOS); Windows Defender
Management features HP BIOS Config Utility (download); HP Client Catalog (download); HP Cloud Recovery; HP Driver Packs (download); HP Image Assistant; HP Management
Integration Kit for Microsoft System Center Configuration Management; HP System Software Manager (download); Update BIOS via Cloud or Network (BIOS
feature)
Power 180 W internal power supply, up to 92% efficiency, active PFC
Dimensions 9.5 x 27 x 29.6 cm
Weight 4.5 kg (Exact weight depends on configuration.)
Energy efficiency compliance ENERGY STAR® certified; EPEAT® 2019 registered where applicable
Environmental specifications Low halogen
